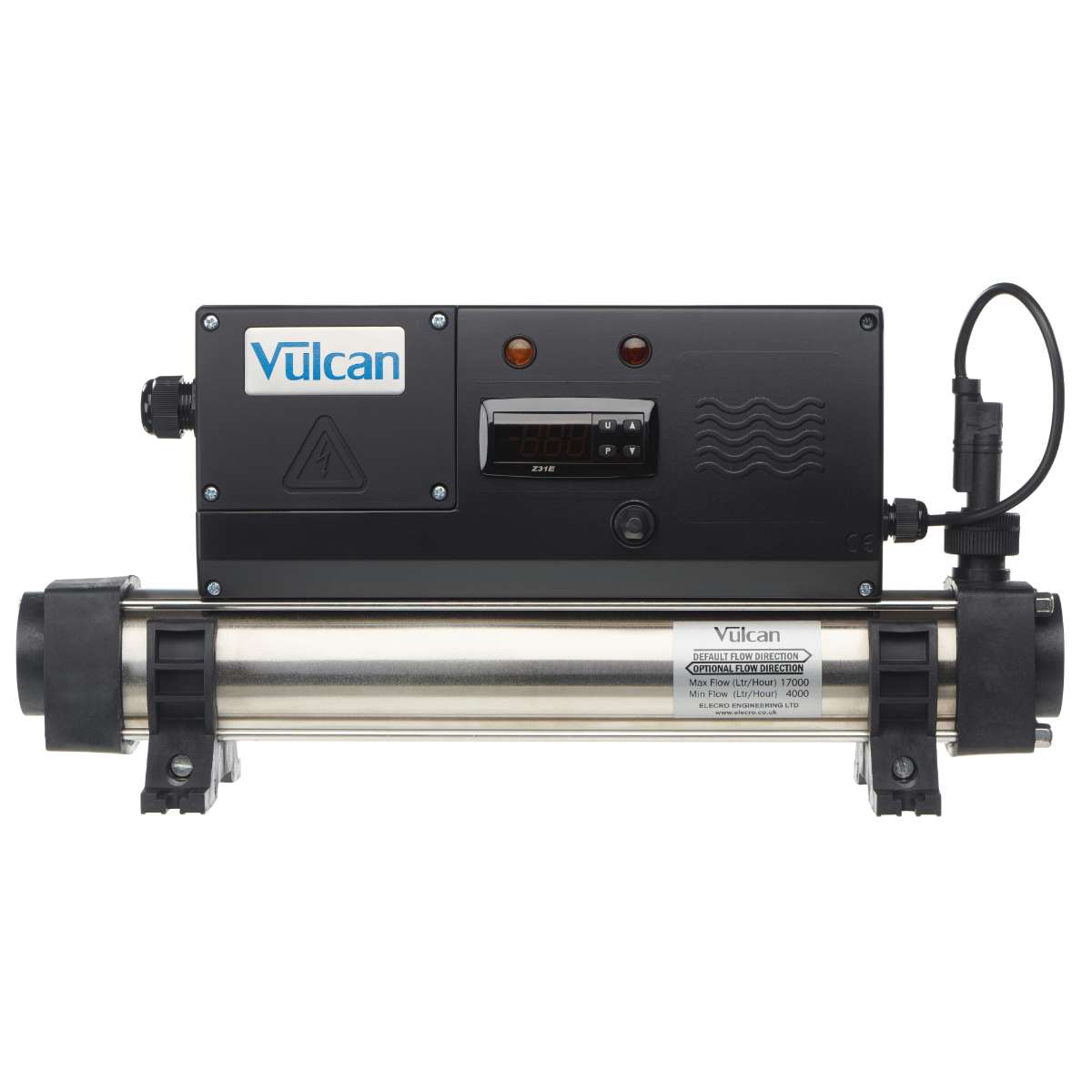

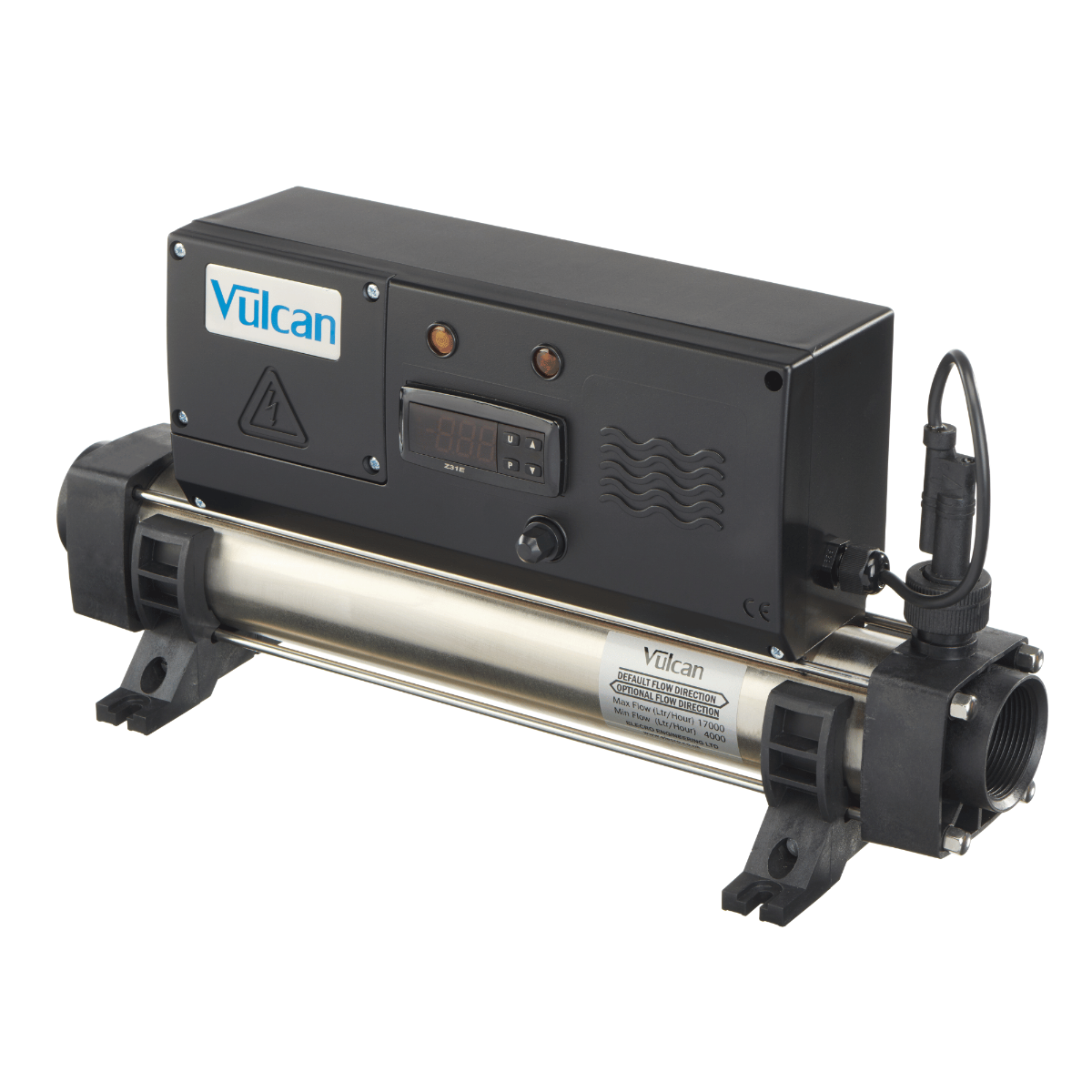

Elecro Vulcan Digital Swimming Pool Heater Size 24-kW 3 Phase

The Elecro Vulcan swimming pool heater is manufactured from top quality components and materials at the Elecro Engineering works in Hertfordshire, England.

• Designed for residential and small commercial pools
• Salt water compatible
• Supplied complete and fully wired with all controls for easy installation by a qualified electrician
• Premium titanium heating elements for reliability
• Digital control
• Flow switch automatically shuts off heater when there is no water flow
• Safety cut-out automatically shuts off heater in the unlikely event of overheating
• Uniquely coiled heating elements to eliminate mineral deposits
• 99.9% operational effi_x001C_ciency throughout extensive product life
• High quality design, built in the UK, to provide reliable and long-lasting products
• No maintenance required
• Silent operation

The Elecro Vulcan heaters are supplied with hose tail adapters for connection to flexible pipework. Construction consists of a flow tube which is fitted with Inlet and Outlet mouldings manufactured from specially formulated polymer alloy material. Universal ABS unions are provided to allow solvent weld connection to the inlet and outlet pipe work. The outlet moulding accommodates a reversible flow switch with a gold tipped reed, and Titanium fulcrum pin. The heater is supported on two swivel feet; these can swivel to permit either wall or floor mounting.

The Elecro Vulcan swimming pool heaters come fully equipped and pre-wired including a super sensitive flow switch, that allows safe coupling to most above ground pools. Please check the technical page of the manufacturers for information on connectivity to your pool before purchase. Please click here for more details

The connections supplied with your Elecro heater are a stepped 1¼" BSP & 1½" BSP (British Standard Pipe). If your Intex pool uses 1.5" hoses with threaded nuts you may wish to buy 2 x Adapter B's (part 10722) and a piece of 1.5" hose (part 11010) which are available from John Adams in the UK to make a sealed connection. It is also possible to make the connection to the 1½" (38-mm) part of the hosetail using 2 jubilee clips & silicone sealant at each side of the heater.

The heater requires only final connection to a mandatory separate RCD. No pump interlock is required. All heaters come fitted with 1.5'' BSP female threaded adapters for connection to all pipework.

The desired pool temperature can be easily set on the Vulcan heater using the panel-mounted thermostat dial in the case of the analogue model, in respect of the digital model by using the touch buttons, resulting in the temperatures being displayed on the LCD screen. Over-temperature protection is provided by the thermal cut out (manual reset).

How to Choose Your Heater

Step 1:
First of all you will need to know the volume of the water in your pool. This information will be on our pool description page or in your pool owner’s manual. Once you have this information view the chart below which indicates which pool heater would be necessary for the water capacity of your pool.

Step 2:
Electricity can be provided via a single or 3 phase system. The single phase system is much more common. However you can purchase a 3 phase system from your electricity supplier. You will need to check what amperage you have in your home. As you can see from the table below the differing heaters require different amperage.

Power requirements

Step 3:
The Vulcan heaters are also available in analogue or digital control. The pool temperature can be set on the heater using a panel-mounted thermostat dial in the case of the analogue model and in respect of the digital model by using the touch buttons, resulting in the temperatures being displayed on the LCD screen. You can select this from the drop down menu at the top of the product description screen.

Things to be aware of when purchasing an Elecro pool heater

• These heaters require wiring to the property's main consumer unit - Similar to the way your electric oven is connected on its own circuit
• Installation must be carried out by a qualified electrician
• The installation costs for the heaters is not included in the price of the heater

Frequently Asked Questions

Q - How long does it take to bring a pool up to temperature?
A - Assuming no heat losses, and a heater sized in the ratio 1.5-kW per 1000-gallons of water: it will take 2 days of continuous running to raise the temperature of a pool from tap temperature to swimming temperature. Heat loss will slow the process particularly during periods of cold weather, i.e. the higher the temperature is to be maintained above average ambient air temperature the slower the heating process will become. The main influencing factor being the level of heat retaining insulation incorporated in the pool shell.

Q - Can I plug my heater in via a standard 3-pin plug?
A - Heater sizes 2-kW and 3-kW can be plugged in via a standard 3-pin domestic plug. Heater sizes 4.5-kW and above require wiring to the property's main consumer unit - the same way a shower or cooker is normally wired. To check the power consumption of your heater please see the tank label of the heater (located on the heaters flow tube)

Q - How much will it cost to heat my pool?
A - Assuming the cost of a unit of electricity to be 6 pence it will cost £4.32 to heat 1000-gallons (4500-Litres) of water from tap temperature to a reasonable swimming temperature. This equation makes no allowance for heat loss.

The cost of maintaining the water temperature will be dependant on the level of insulation given by the pool structure, a moderately well insulated pool being used only during summer months may only require 3 hours of top up heat on average per day. At a cost of 27 pence per 1000-gallons (when the heater is sized in the ratio 1.5-kW per 1000-gallons). The religious use of a solar floating cover could dispense with the need for any top up heat being required during warm sunny days.

Q - My pool's flexible pipe is slightly larger than the fittings supplied
A - The connections supplied with your Elecro heater are a stepped 1¼" BSP & 1½" BSP (British Standard Pipe). Above ground pool manufacturers can have non-standard pipe work. It is possible to make a correct connection to the heater hosetail using 2 jubilee clips & silicone sealant at each side of the heater.

If you are unable to achieve this you will need to source a connection / adapter that goes from 1½" BSP thread to the size you require for your pipe work, you could try plumbing merchants or your local swimming pool shop.

If you do not wish to cut the return pipe to the pool then adapters are available that will reduce the thread from the 1.5" BSP to suit smaller hoses

Please note the above information is for guidance only & running costs will vary from pool to pool and will be dependant on the following main points:

The Level Of Insulation
Water Temperature to be Maintained
Average Ambient Air Temperature
The Cost of a Unit of Electricity
Wind Chill
